Cartridge Filter Housings

Cartridge Filter Housings

Amafilter® liquid cartridge filter housings are designed and built to deliver quality, functionality and reliability. They are produced to ASME industry standards and can be used in a variety of filtration process including pre-filtration, final filtration and polished filtration. Our housings are extensively used in the chemical, food and beverages and minerals & mining industries.

We can custom-design cartridge filter housings to meet specific customer requirements and meet all necessary regulations and international standards. We work closely with our customers to understand their challenges and design and customize our housings to meet their unique needs.

The AFK multi filter housing range

Suitable for hazardous and non-hazardous fluids applications.


The AFK range of cartridge filter housings is suitable for hazardous fluids and non-hazardous fluids applications. It is available in small to large sizes to accommodate specific flow and filtration requirements.

The AFK multi cartridge range is manufactured in stainless steel providing quality and durability for industrial liquid applications.
The complete range conforms to PED 2014/68/EU.

Features:
• Compact design
• Manufactured in stainless steel
• No internal moving parts to allow for easy access and reducing the cost of maintenance.
• Ergonomic and easy-to-use cover closure.
• Fully drainable filter housing.
• Suitable for filter cartridges of 10″, 20″, 30″ or 40″ length
• Available from stock. Amafilter® can supply four standard sizes in stainless steel from stock. These are available with flanged connections.

AFK6-24 Multi Cartridge Filter Housings

The amafilter® AFK6-24 multi cartridge filter housing is a cost effective solution for all industrial liquid and gas applications and conforms to PED 2014/68/EU category III.

The AFK6-24 series are manufactured in stainless steel. The four models, AFK6, AFK12, AFK18 and AFK24, are small to mid-size models within the AFK range and suit various flow rates. The maximum temperature is 150 °C.

AFK30-40 Multi Cartridge Filter Housings

The amafilter® AFK30-40 multi cartridge filter housing, depending on the fluid rheology, is a cost effective solution for all industrial liquid applications and conforms to PED 2014/68/EU.

The AFK30-40 series is manufactured in stainless steel. These are medium size models in the AFK range and suit various flow rates.



AFK72 Multi Cartridge Filter Housings

The amafilter® AFK72 multi cartridge filter housing, depending on the fluid rheology, is a cost effective solution for all industrial liquid applications and conforms to PED 2014/68/EU.

The AFK72 is manufactured in stainless steel. This model is a larger size version within the AFK range and suits various flow rates. The maximum temperature is 150°.


AFK136 Multi Cartridge Filter Housings

The amafilter® AFK136 multi cartridge filter housing, depending on the fluid rheology, is a cost effective solution for all industrial liquid applications and conforms to PED 2014/68/EU category IV.

The AFK136 is manufactured in stainless steel. This model is the largest size version within the AFK range and suits various flow rates.


AFS Sanitary cartridge filter housings

Suitable for pharmaceutical and beverage applications

The amafilter® AFS sanitary cartridge filter housing has been specifically designed for pharmaceutical and beverage applications. The AFS range including, AFS1, AFS3-8 and AFS12-30, provide high quality single & multi cartridge filter housings for sterile filter applications. The range is manufactured in stainless steel and conform to PED2014/68/EU article 4, paragraph 3.

This range is suitable for the following applications: Filtration of beverages, soft drinks, mineral water, non-hazardous fluids, high purity fluids and steam sterilizing is also possible.

AFS 1 Sanitary single cartridge filter housing

  • Stainless Steel cartridge housing
  • Hygienic and compact designed filter housing
  • Filter housing can be fully drained
  • Suitable for one cartridge
  • Suitable for length 10″, 20″, 30″ or 40″ filter cartridges
  • Externally mechanically polished
  • Various configurations possible
  • Suitable for cartridges with end-cap configuration X7 or X3 and X8
  • The maximum temperature for this filter housing series is 150 ºC at 4 bar.

AFS3-8 Sanitary multi cartridge filter housing

  • Stainless Steel cartridge housing
  • Hygienic and compact designed filter housing
  • Filter housing can be fully drained
  • Suitable for 3, 5 or 8 filter cartridges
  • Suitable for length 10″, 20″, 30″ or 40″ filter cartridges
  • Externally mechanically polished
  • Various instrument configurations possible
  • Suitable for cartridges with end-cap configuration X7 or X3 and X8
  • The maximum temperature for this filter housing series is 150 ºC at 4 bar

AFS12-30 Sanitary cartridge filter housing

  • Stainless Steel cartridge housing
  • Hygienic and compact designed filter housing
  • Filter housing can be fully drained
  • Suitable for 12, 18, 24 or 30 filter cartridges
  • Suitable for length 10″, 20″, 30″ or 40″ filter cartridges
  • Externally mechanically polished
  • Various instrument configurations possible
  • Suitable for cartridges with end-cap configuration X7 or X3 and X8
  • The maximum temperature for this filter housing series is 150°C at 4 bar

AFM6-24 Multi cartridge filter housings

Suitable for non-hazardous fluids or (process) water applications

The amafilter® AFM6-24 are industrial cartridge filter housings, depending on the fluid rheology, to offer an economical solution suitable for non-hazardous fluids and (process) water applications. The range is available in four different sizes to suit various flow rates. The range is manufactured in stainless steel and conforms to PED2014/68/EU article 4, paragraph 3.


  • Stainless steel cartridge housing
  • Compact design
  • Easy to use
  • The maximum temperature is 90 oC.
  • Suitable for six filter cartridges
  • Suitable for length 10″, 20″, 30″ or 40″ filter cartridges
  • Available from stock. Amafilter® can supply four standard sizes in stainless steel from stock. These are available with flanged connections.

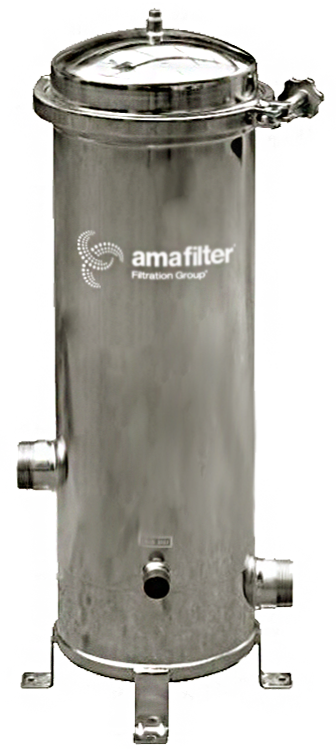

AFT7-28 cartridge filter housing

Suitable for (process) water applications

The amafilter® AFT series of cartridge filter housings have been designed, depending on the fluid rheology, to provide a cost effective solution for a broad range of applications, particularly in (process) water applications. The range is manufactured in stainless steel and conforms to PED2014/68/EU article 4, paragraph 3.





  • Stainless steel cartridge housing
  • The maximum temperature is 90°C
  • Suitable for a wide range of end-cap configurations
    • Single Open End (SOE), with or without fin
    • Double Open End (DOE)
  • Suitable for multiple filter cartridges
  • Easy to use due to design and construction
  • On-request a wide range of inlet/outlet options are possible

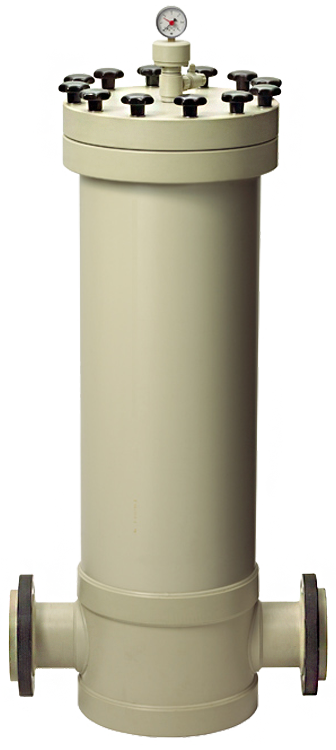

S-AFC1 Plastic single cartridge filter housing

Suitable for filtration of seawater or chemical applications (such as acids and alkaline).

The amafilter® S-AFC1 plastic single cartridge filter housing is used when plastic housing is preferable to a metal filter housing. The S-AFC1 is a polypropylene single cartridge filter housing designed to conform with PED2014/68/EU article 4, paragraph 3.

  • The fluid does not come into contact with metal parts
  • Easy to use, smooth surface for cleanability
  • Suitable for a single cartridge
  • Suitable for all common types of filter cartridges
  • Cartridges with end-cap configuration X0, X3 or X8
  • Quick replacement of filter cartridge without additional tools
  • The S-AFC1 filter housing can be operated with all liquids belonging to PED2014/68/EU Fluid group 2, if the vapor pressure of 0.5 bar(g) is not exceeded

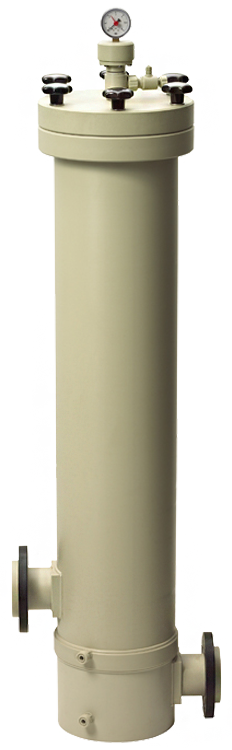

S-AFC3-24 Plastic multi cartridge filter housing

Suitable for filtration of seawater or chemical applications (such as acids and alkaline).

The amafilter® S-AFC3-24 plastic multi cartridge filter housing is used when plastic housing is preferable to a metal filter housing. The S-AFC3-24 is a polypropylene multi cartridge filter housing designed to conform with PED2014/68/EU article 4, paragraph 3.


  • Fluid does not come into contact with metal parts
  • Easy to use, smooth surface for cleanability
  • Quick replacement of filter cartridge without additional tools
  • Suitable for multi cartridges with outer diameter of 71 mm
  • Suitable for all common types of filter cartridges
  • Cartridges with end-cap configuration X0, X3 or X8
  • The S-AFC3-24 filter housing can be operated with all liquids belonging to PED2014/68/EU Fluid group 2, if vapor pressure of 0.5 bar(g) is not exceeded


AFL1-P single plastic cartridge filter housings

Suitable for water, chemical and Food and Beverages applications

The amafilter® AFL1-P single plastic cartridge housing is ideally for small batch processes which need polishing or for low-flow applications (maximum of 3 m³/h). The AFL1-P is a cost effective cartridge for this type of applications and conforms with PED2014/68/EU article 4, paragraph 3.


  • Three piece construction with cover closing by means of a ring
  • Shatter resistant cartridge for durability
  • The maximum temperature for this filter housing series is 50 ºC.
  • Designed for a wide range of applications.
  • Suitable for single cartridge
  • Filter housing materials conform to FDA requirements
  • Vent plug standard
  • Spanner for tightening the ring included
  • Drain plug on 20″ housing
  • Optional: Mounting brackets

AFL1-S single cartridge filter housings

Suitable for water, chemical, Food and beverages, non-hazardous fluids applications.

The amafilter® AFL1-S cartridge filter housing is designed to accommodate a single filter stainless steel cartridge. This filter housing is a cost effective solution for small batch processes which need polishing or for low-flow applications (maximum of 3 m3/h) and conforms the PED 2014/68/EU article 4, paragraph 3.


  • Stainless steel 316 construction
  • Suitable for a single DOE cartridge
  • Maximum temperature of the filter housing 90 ºC
  • Closure with T-handle or with tri-clamp
  • No tools required for changing the filter cartridge
  • Vent and drain plugs are standard
  • Available on-request: single cartridge filter housing configuration suitable for X3 end-caps or with tri-clamp closure for DOE

HFH Series High flow cartridge filter housings

Suitable for process water, wastewater, cooling water, utility water and fine chemicals applications.

The amafilter® HFH range of high flow cartridge filter housings, available from 1 to 19 cartridges. The amafilter® HFH1-19 multi high flow cartridge filter housing is ideal for high flow processes.

The HFH is designed specifically with a high throughput whilst occupying a minor “footprint” area. The HFH filter housings can be used in both the horizontal and vertical orientation depending on the availability of space. The in-line horizontally mounted housing minimizes pressure drop making it easily accessible.
The filter housing series conforms with PED2014/68/EU article 4, paragraph 3.

  • High-flow single and high-flow multi-cartridge filter housings available
  • The maximum temperature for this filter housing series is 90 ºC.
  • Designed specifically to complement the amaGuard HF-PP cartridge, available from Global Filter, part of Filtration Group.
  • All components are stainless steel
  • The cover is opened using a davit arm as a standard construction
  • Inside to outside flow minimizes the possibility of contamination during cartridge change-out
  • The standard model is the horizontal configuration. The vertical configuration is available on-request
  • Fewer filter elements to change-out
  • Eyebolt design option allows for quick and easy change-out

Amafilter® VC Cartridge Filter Housing for Molten Sulphur Safety/Polishing Filtration



The amafilter® VC cartridge filter for molten sulphur safety/polishing filtration is used as a polishing filter for the removal of fine ash and other particles, which occasionally could find their way through (by-pass), when the main filtration is   not 100% effective.

The VC cartridge filter is also used as a safety filter (police) to prevent precoat material  passing through the horizontal pressure leaf filter due to mistakes in switching valves, insufficient precoat and stranges in flow.

The VC cartridge filter is installed downstream the main horizontal pressure leaf filter.

  • The filter cartridges are mounted on a septum plate making it easy and quick to replace the existing filter cartridge batch with a new set hence reducing servicing and minimizing downtime.

Delivers effective polishing filtration ensuring that solid impurities are reduced from 20-30 PPM, generated by the first main filtration step, to an even lower value of 5-10 PPM. This is critical to the process as these solid impurities (contaminants) have a direct impact on the performance of the sulphur burners and catalyst convertor beds (sulphuric acid production unit). They are progressively poisoned by dirt accumulation giving rise to increases in pressure drop and shorter operating durations.



The amafilter® VC polishing cartridge filter in combination with the amafilter® horizontal pressure leaf filter delivers significant benefits:

  • the time between maintenance break downs (intervals) of the catalyst beds, sulphur burners and pipe reactors is considerably improved from 3-6 months to 2 years. This results in significantly lower maintenance costs.
  • Improved safety as less interventions are required to optimise the system.

An extensive reference list of satisfied customers is available.
